Efficient Automatic Beer Bottling System for Craft Breweries

Podstawowe informacje

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	Sunswell
Orzecznictwo:	CE, ISO
Numer modelu:	CGF

Minimalne zamówienie:	1 zestaw
Cena:	USD 20000/set
Szczegóły pakowania:	Wyroby z drewna nadające się do żeglugi oraz folia owinięcia
Czas dostawy:	50 dni
Zasady płatności:	D/A, Akredytywa, D/P, T/T, MoneyGram, Western Union
Możliwość Supply:	10 zestawów/zestawów miesięcznie

Najlepsza cena Skontaktuj się teraz

Rodzaj opakowania:	Puszki, butelki, woreczki stojące, torby	Materiał opakowaniowy:	Plastik, papier, szkło
Typ napędzany:	elektryczny	Woltaż:	380 V
Wymiar (lwh):	675048352700mm	Gwarancja:	1 rok
Waga:	7500 kg	Kluczowe punkty sprzedaży:	Wysoka dokładność
Pojemność maszyn:	4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 200	Materiał wypełniający:	Piwo, Mleko, Woda, Olej, Sok, Napój Energetyczny, Woda Gazowana
Podstawowe komponenty:	Silnik, PLC, przekładnia, skrzynia biegów	Dokładność napełniania:	± 2%
Skala wypełniania:	250ml do 2000ml

Products Description

Glass Bottle Beer Filling Machine

Automatic glass bottle Soft drinks rinser filler capper 3-in-1 filling Triblock, combined with rinsing, filling and capping. It is

innovated and designed in the requirement of carbonated soft drinks, beer, energy drink, and soda water, on the basis of

introducing, digesting and absorbing advanced technology from Germany.

The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing

all kinds of carbonated drinks such as beer, soft drink, energy drink mineral water and pure water. The line has features of

unique design,new style, complete functions,multi-purpose, convenient in operation, compact construction, high automaticity. It is the best filling equipment in China.

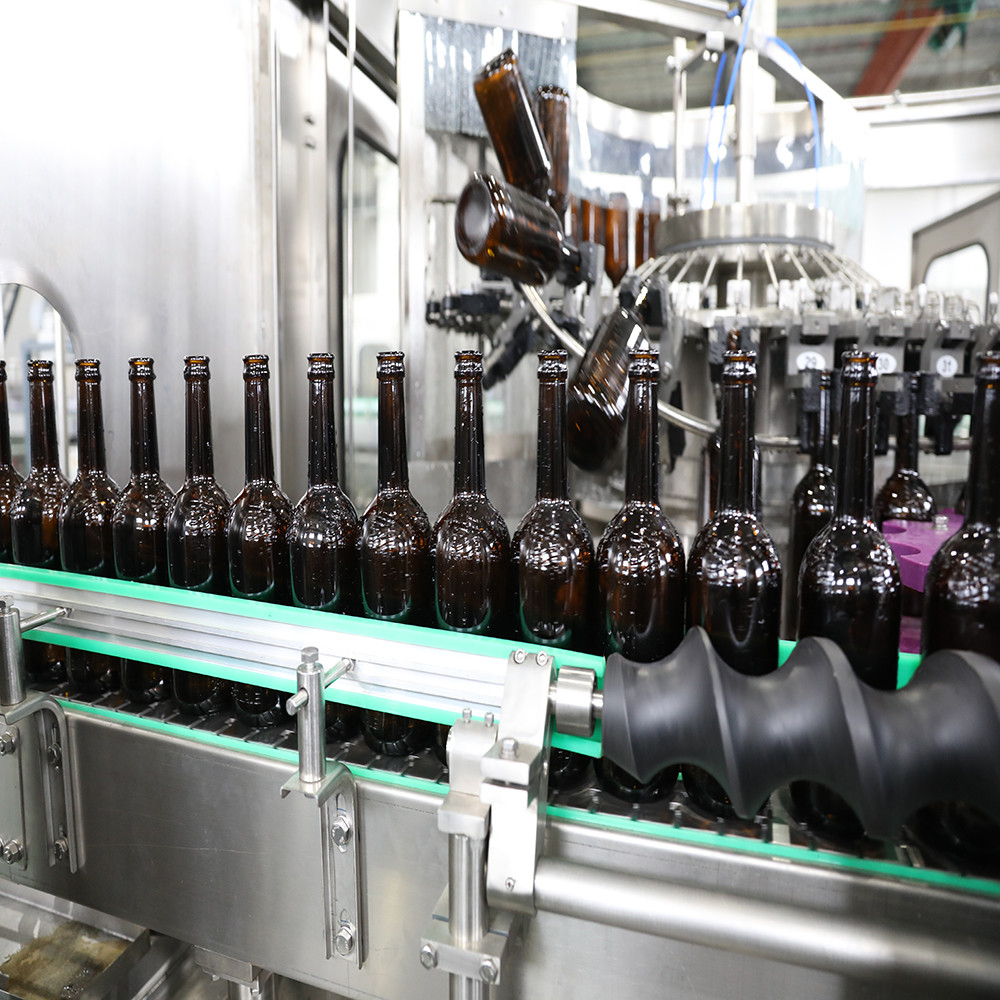

1. Glass bottle carbonated drink filler Triblock Bottle in-feed system

Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.

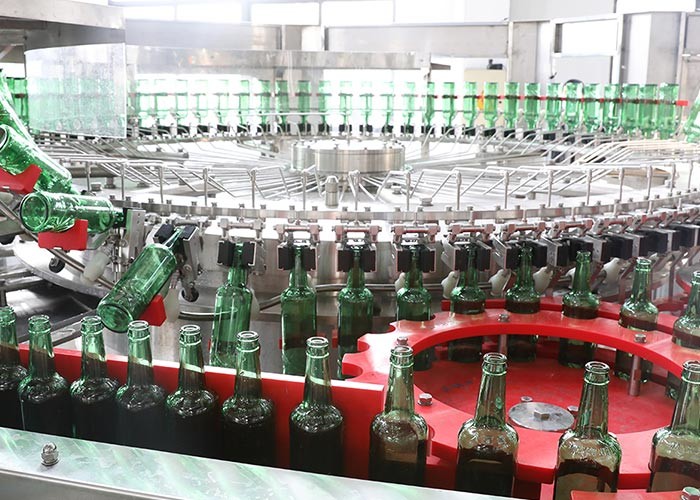

2.Glass bottle carbonated drink filler Triblock Rinser

Carbonated drinks filling machine is rotary washing machine, which mainly used for beverage such as beer or carbonated drink, new bottle enter the equipment by star wheel, through gripper and overturn mechanism make bottle down, after washing, it overturn

bottle up automatically, then convey to the filling part by star steel, the main material and washing gripper is stainless steel .

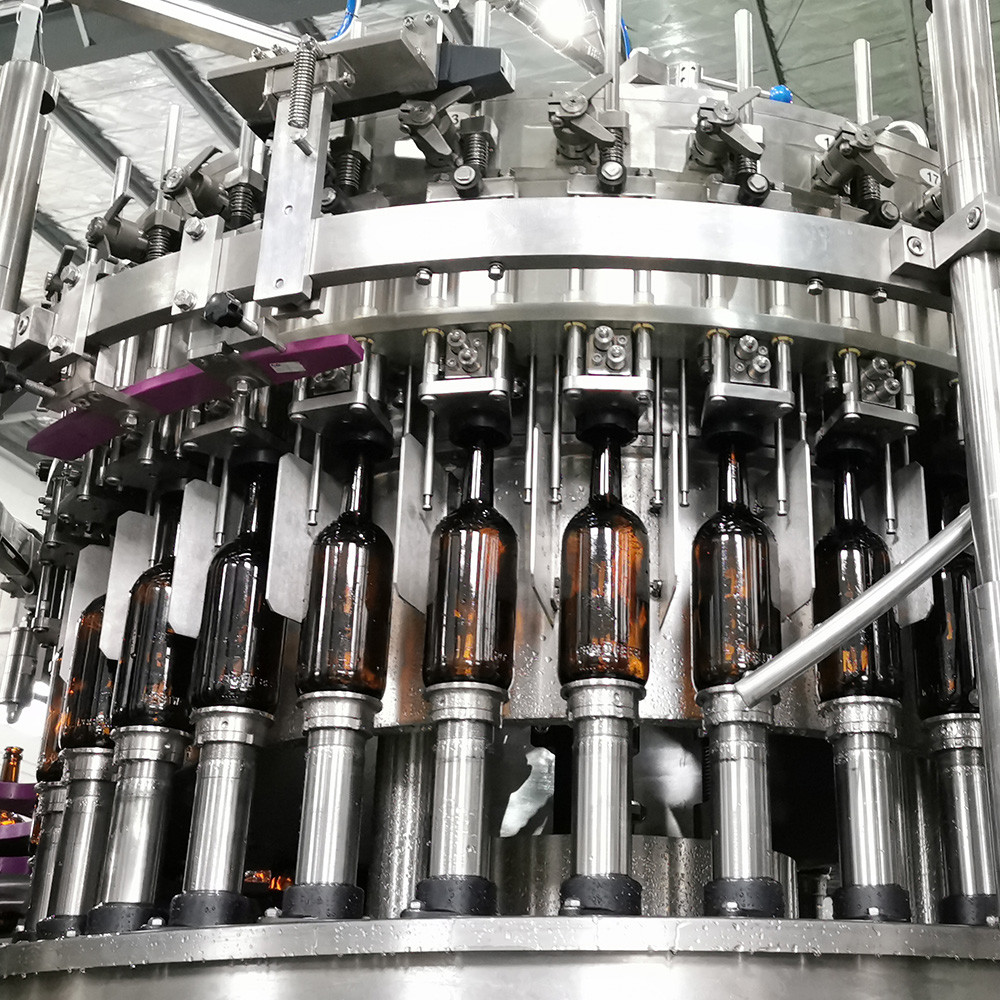

3. Glass bottle carbonated drink Triblock Filler

A. Filling valve use isobar machinery valve, double vacuum valve, or flow meter counter pressure filler valve, with High speed and

big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.

B.Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the

main motor speed, the machine adopt Variable-frequency variable speed, whole operations area

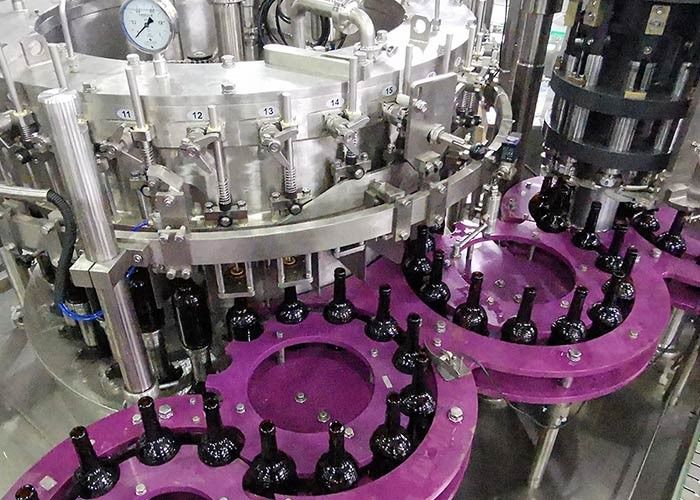

4. Glass bottle carbonated drink Triblock Capper

The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, screw cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping

Machine allocated.

5.Output bottle star wheel part

Nylon wheel and conveyor belt cooperate output the bottle.

6.Output bottle conveyor belt part

Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle

7.Rack part

Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.

8.Electronic control system part

The electronic components like PLC and transducer are from Mitsubishi, Omron, etc., The pneumatic devices are also from

international famous brand.9.Equipment structure
Base,Rotary rinser,Rotary filler,Rotary capper,Bottle infeed and outfeed system,Control

10.Main configuration
Touch screen: Pro-face
PLC program controller: Mitsubishi

Inverter: Mitsubishi

Photoelectrical controller: Banner

Proximity switch: Turck

Other electrical components: Siemens

Pneumatic component: Festo

Main motor: ABB

Filler Triblock Model	Filling Heads	Capacity 500ml	Bottle Size	Power	Dimension(mm)	Weight(KG)
DCGF14-12-5	12	3000BPH	200-2000ml	1.5kw	2200×1800 × 2000	2500
DCGF 18-18-6	18	5000BPH	200-2000ml	2.2kw	2500 × 1800 × 2300	3000
DCGF 24-24-8	24	700BPH	200-2000ml	3 kw	2800 × 2100 × 2300	3000
DCGF 32-32-10	32	9000BPH	200-2000ml	4 kw	3500 × 2200 × 2300	3500
DCGF 40-40-10	40	1200BPH	200-2000ml	4kw	4760 × 2080 × 2300	4000
DCGF 50-50-12	50	15000BPH	200-2000ml	5kw	5150 × 3820 × 2700	5000
DCGF 60-60-15	60	18000BPH	200-2000ml	5kw	5300 × 3950 × 2700	6500
DCGF 72-72-18	72	20000BPH	200-2000ml	6kw	6250 × 4773 × 2700	7500
